Nano-Ros™ Technology Commercial & Residential RO
NanoWater is an engineering Company provides
complete water and wastewater solutions and services using cutting-edge technologies to serve municipal and industrial clients. NanoWater has the in-house capabilities in design, engineering and manufacturing of water filtration systems for all applications where reverse osmosis (RO), seawater desalination (SWRO) & brackish reverse osmosis (BWRO ) , ultrafiltration (UF) and other membrane
water treatment technologies are proven.
NanoWater has been providing advanced reverse osmosis water treatment technologies to treat the world’s water needs for industrial, commercial, and residential applications for many years. We also stock a wide variety of water filters including sediment, submicron, and carbon activated membranes.
Our customer commitment is demonstrated in our ability to provide individual solutions to each unique application. We optimize the system with your needs in mind through expert applications engineering, superior customer service and competitive pricing.
NanoWater offers a complete line of filtration system ,Nanowater supplies either the RO alone or a complete skid mounted including MMF , micron filter , ACF , Softeners including all monitoring system and control.
PRODUCT DESCRIPTION
Our Reverse Osmosis systems remove up to 99.9% of salts and contaminates from different impure feed water sources including municipal, brackish and surface water. The system blocks bacteria, particles, sugars, proteins, dyes, and impurities that encompass a molecular weight of more than 150-250 Dalton. NanoWater offers a wide array of pre-engineered and custom reverse osmosis systems, ranging in capacity from 30,000 to 1,000,000 GPD. Our industrial RO systems are manufactured to deliver high quality water under the most stringent requirements of ongoing operation and corrosive conditions. These RO units are first-rate systems engineered to provide the most cutting-edge solutions that the water treatment industry can offer.
They are also designed with selectable functional, control features and additional apparatus supplying user’s the capacity to custom-make your reverse osmosis machine. Whatever your water treatment application requires, our industrial reverse osmosis system will be your optimal solution.

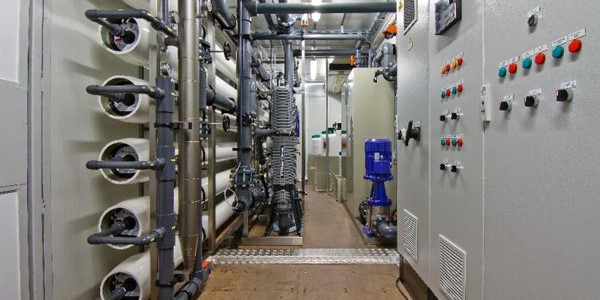

Containerized / Mobile Reverse Osmosis RO Systems
NanoWater offers fully containerized/mobile RO water treatment systems that are assembled inside of an ISO standard shipping container. Each container is customized for each individual water treatment application making it easy to install and operate with high efficiency, a compact foot print, and energy saving features.
OPERATION SPECIFICATIONS | |||||
Max. feed water temperature: 42°C Equipment upgrade for TDS up to 5,000 ppm Hydrogen Sulfide must be removed (H2S) Max. Silica tolerance: 60 ppm @ 60% recovery | Feed water TDS: 0-1,000 ppm Operating pressure: 150 to 250 psi pH tolerance range: 3-11 Max. Iron content: 0.05 ppm | Feed water pressure: 20 to 80 psi Hardness over 1 GPG requires antiscalant dosing, Turbidity should be removed Operate at higher TDS by lowering recovery | |||
Model Number | Permeate Flow Rate | Quantity of 8″ Membranes | Motor HP Rating at 1,000 ppm | ||
GPD | M3/D | 60Hz | 50Hz | ||
NanoROS-28 | 28,000 | 106 | 4 | 7.5 | 5 |
NanoROS-36 | 36,000 | 136 | 5 | 7.5 | 5 |
NanoROS-43 | 43,000 | 163 | 6 | 7.5 | 7 |
NanoROS-57 | 57,000 | 216 | 8 | 7.5 | 7 |
NanoROS-72 | 72,000 | 273 | 10 | 15 | 10 |
NanoROS-87 | 87,000 | 329 | 12 | 15 | 15 |
NanoROS-108 | 108,000 | 409 | 15 | 15 | 15 |
NanoROS-130 | 130,000 | 492 | 18 | 20 | 15 |
NanoROS-144 | 144,000 | 545 | 20 | 20 | 20 |
NanoROS-173 | 173,000 | 655 | 24 | 20 | 25 |
Note: the above is made based on a certain test condition, please consult NanoWater technical team for final design and operating conditions.
Reverse Osmosis Features |
|
Standard Features: | Available Options: |
|
|
APPLICATIONS | ||
|
|
|
From small size project to industrial size, NanoWater offers a full range of both standard and custom engineered Seawater Desalination Reverse Osmosis Systems for applications ranging from small to municipalities size , hotels, resorts, military, off-shore platforms, and various industrial applications. NanoWater specializes in tailored water treatment solutions to meet the specific needs of our clients. We support municipal and industrial projects, remediation, food and beverage, water reuse, agriculture, power & utilities, breweries, mining, oil & gas, hotels and resorts as well as pharmaceutical industry.From conceptual design to technical O&M support, NanoWater extensive experience offers value to our customers. NanoWater commitment to innovation and applications of advanced technologies as well as the quality of execution. | ||
